Prodigy Stratix 10 Series - Prototyping with Stratix 10 FPGA
Products

Stratix 10 GX 10M

With its latest Intel (Altera) Stratix 10 GX 10M FPGA technology, the S2C Prodigy Intel Stratix 10 GX 10M FPGA module is compatible with 90+ Prodigy daughter card libraries, with a maximum capacity of up to 318 M ASIC gates in one FPGA. S2C's Stratix 10M Prodigy Logic System enables users to take advantage of the performance and functionality of Intel Stratix 10 GX FPGAs to meet their design needs by providing a complete design environment that includes all necessary hardware and software.

Contact S2C

FPGA Resources - Stratix 10 GX 10M


  • Large capacity and scalability with 40.8M Logic Elements

  • Up to1,102Mb memory

  • Up to13,842 DSP blocks


Technical Highlights


  • Up to 4,608 high-performance I/Os for inter FPGA connections and daughter cards

  • 160 high-speed transceivers that can run up to 16Gbps

  • 64 high-speed transceivers and 128 GPIOs through 8 PGT Connectors

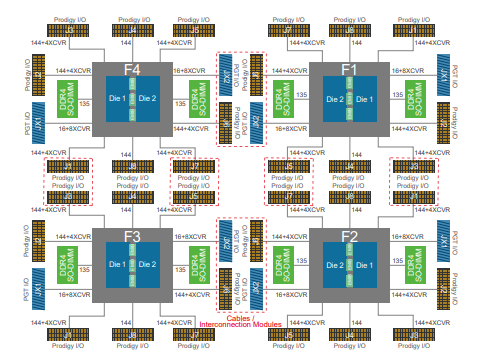

I/O Architecture


Stratix 10 GX 10M

S10 GX 10M Prodigy Logic Systems


S10 GX 10M Prodigy Logic System Configuration Table


S10 GX 10M Prodigy Logic System Configuration Table
Estimated ASIC Gates (M)31879
FPGAs4 * S10GX10M1 * S10GX10M
Logic Elements (K)40,80010,200
M20K memory (Mb)1,012 Mbits253 Mbits
DSP Blocks13,8243,456
External User I/Os4,7361,184
XCVR Transceivers160 GTH40 GTH
PCIe Gen3 Support√√
DDR4 SO-DIMM82
Prodigy Connectors (GPIO, LVDS)328
PGT Connectors (SerDes)82
DatasheetDownload
