Prodigy Stratix 10 Series——S10 2800
Products

Stratix 10 GX 2800

Based on Intel (Altera) Stratix 10 GX2800 FPGA, the Single S10 2800 Prodigy Logic System is well suited for medium to large SoC designs. S2C's 6th generation Player Pro™ software technology enables users to perform an array of runtime features remotely through both Ethernet and USB. Users also have access to S2C's vast library of over 90 daughter cards to quickly build prototyping targets.


FPGA Resources - Stratix 10 GX 2800


  • Large Capacity and Scalability with 2,753K Logic Elements

  • Up to 229Mb memory

  • 5,760 DSP blocks



Technical Highlights


  • 20 high-speed transceivers that can run up to 16Gbps

  • 864 high-performance I/Os through 6

  • All-in-one form factor: 310mm × 275mm × 94mm (L × W × H)

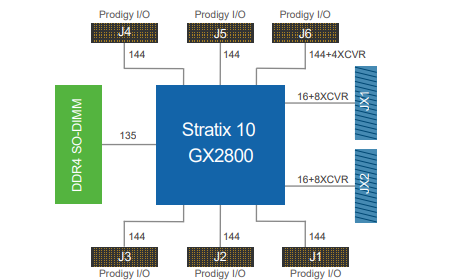

I/O Architecture


Stratix 10 GX 2800

Contact S2C

S10 2800 Prodigy Logic System Configuration Table


S10 2800 Prodigy Logic System Configuration Table
Estimated ASIC Gates (M)22
FPGAs1 * S10GX2800
Logic Elements (K)2,753
M20K memory (Mb)229 Mbits
DSP Blocks5,760
External User I/Os896
XCVR Transceivers20 GTH
PCIe Gen3 Support√
DDR4 SO-DIMM1
Prodigy Connectors (GPIO, LVDS)6
PGT Connectors (SerDes)2
DatasheetDownload
