Products
Connector Connectivity
Products

Connector Connectivity

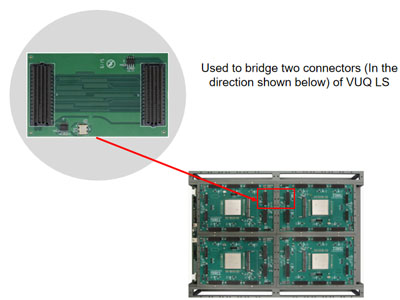

Prodigy Interconnection Module Type C



  • Connects 144 GPIO and 4 SerDes between two Prodigy connectors.

  • The spacing between two connectors is 75mm.


Available Types

Reference Clock

P-PM-IMC

Fixed 100MHz

P-PM-IMCP

Programmable (10 ~ 810MHz)

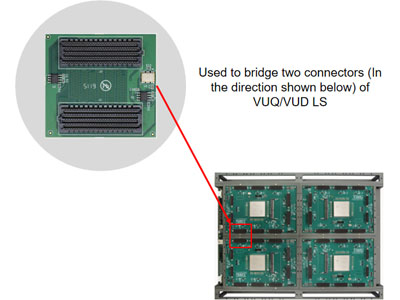

Prodigy Interconnection Module Type D



  • Connects 144 GPIO and 4 SerDes between two Prodigy connectors.

  • The spacing between two connectors is 35mm.


Available Types

Reference Clock

P-PM-IMD

Fixed 100MHz

P-PM-IMD(160MHz)

Fixed 160MHz

P-PM-IMDP

Programmable (10 ~ 810MHz)

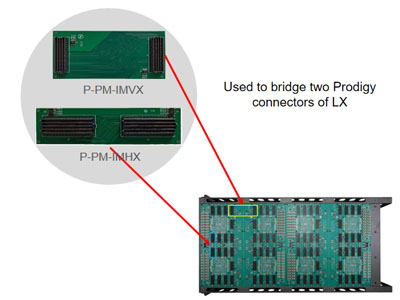

Prodigy Interconnection Module Type H and Type V


  • Occupies two Prodigy connectors

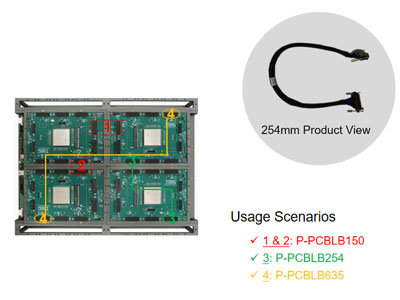

Prodigy Interconnection Cables Type B


  • Connects the two Prodigy I/O connectors

  • Support 144-pin single-ended / 72-pairs LVDS

  • Standard cable lengths: 150mm, 254mm, 635mm, 1000mm & 2000mm


Cable lengths available
P-PCBLB150
P-PCBLB254
P-PCBLB635
P-PCBLB1000
P-PCBLB2000
