Products
High Speed MCIO Peripherals
Products

High Speed MCIO Peripherals

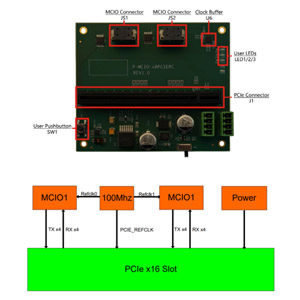

8-Lane PCIe Root Complex MCIO Module


  • Provides one x16 PCIe Slot, only support 8 lanes

  • Provides one 100MHz reference clock

  • Provides 3 LEDs and 1 Push Buttons

  • Occupies two MCIO connectors

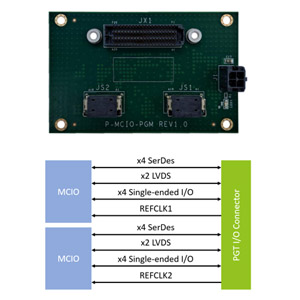

MCIO to PGT Converter Module


  • Converts two MCIO connectors to one PGT connector

  • Each MCIO has 4 transceivers, 2 LVDS signals, 4 single-ended signals and 1 differential reference clock

  • Occupies two MCIO connectors

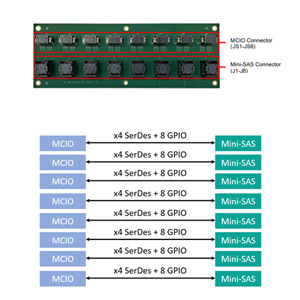

MCIO to Mini-SAS Converter Module


  • Converts 8 MCIO connectors to 8 Mini-SAS connectors

  • Each MCIO or Mini-SAS has 4 transceivers and 8 single-ended signals

  • Occupies 8 MCIO connectors



Prodigy MCIO Cables


  • Connects the two MCIO I/O connectors

  • Support the differential voltage standard

  • Standard cable lengths: 250mm, 1000mm, 1500mm & 3000mm
